Product Overview

Designed to be installed without a recessed housing. Works with New Construction Frames or Remodel Power Packs and Koto™ Twist-On Trims.

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Option:

Title 24

Wet Rated

Refinement Options

Option:

Title 24

Bulb Type:

LED

Kelvin:

3500

Lumens / Light Output:

950

Beam Angle:

90°

Bulb CRI:

95

JA8:

Yes

Location Rating:

Wet Rated

Max Wattage:

10.5 W

Safety Rating:

cUL Approved

Title 24:

Yes

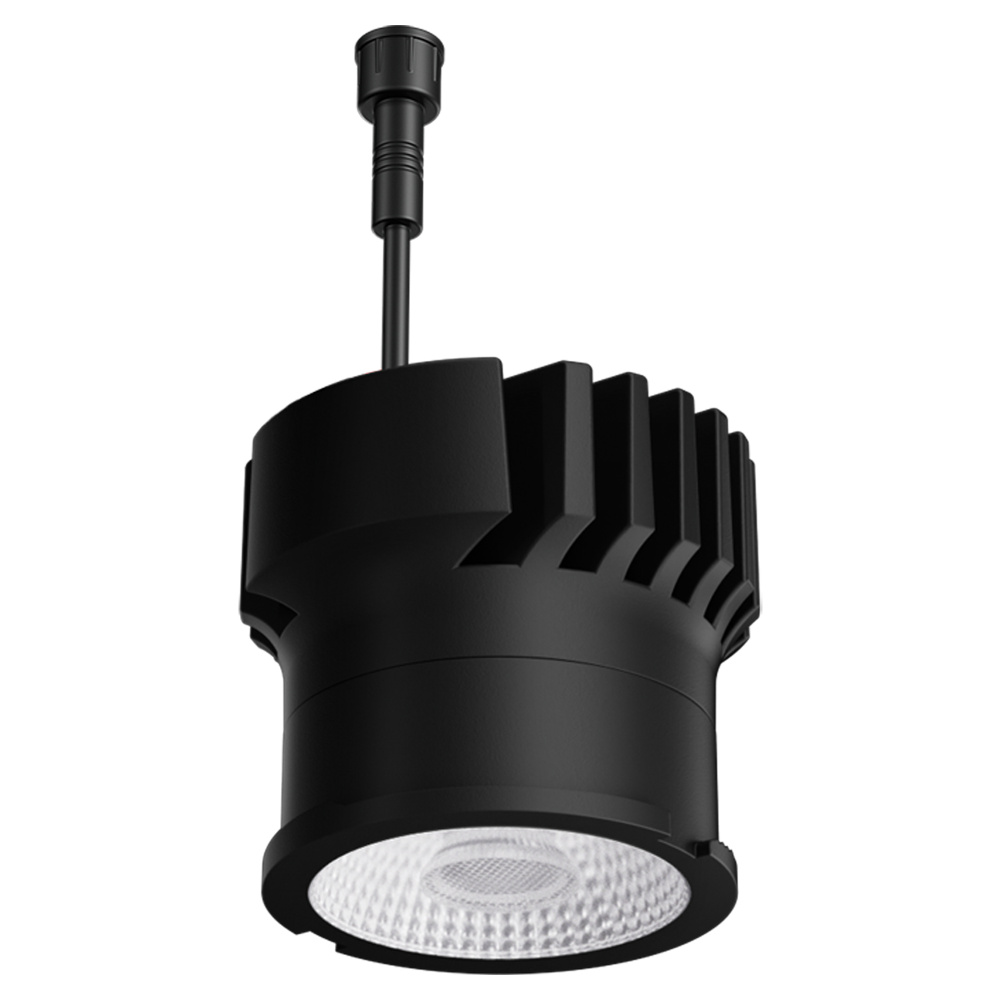

Canless Module works with Koto™ frames and power packs

Covered by U.S. PATENTS and Patents Pending

Driver specified for 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) dimming

Excellent color rendering 95+ CRI

IC rated for direct contact with insulation

Life span of 50,000 hours L70

Offered in 2700K, 3000K, 3500K, 4000K, Sunset Dimming (Dims from 3000K to 1800K), & Human Centric (Dims from 4000K to 2200K)

Optional Reflectors: 15º (EP735C), 25º (EP736C), 38º (EP737C), 60º (EP738C)

Optional: Louver (L45), Linear Lens (L46), Spread Lens (L47), Frosted Lens (L49), White Koto Snoot (L50W). Black Koto Snoot (L50B), Color Shifter (L51), Blue Lens (L52), Pink Lens (L53)

Push-&-Twist connector on module for easy installation

Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C)

Title 24 JA8-2022 Compliant

Works in 2″, 3″, 4″ and 6″ Canless Koto™ twist-on trims

Manufacturer Info

Manufactured By:

Elco Lighting
