Product Overview

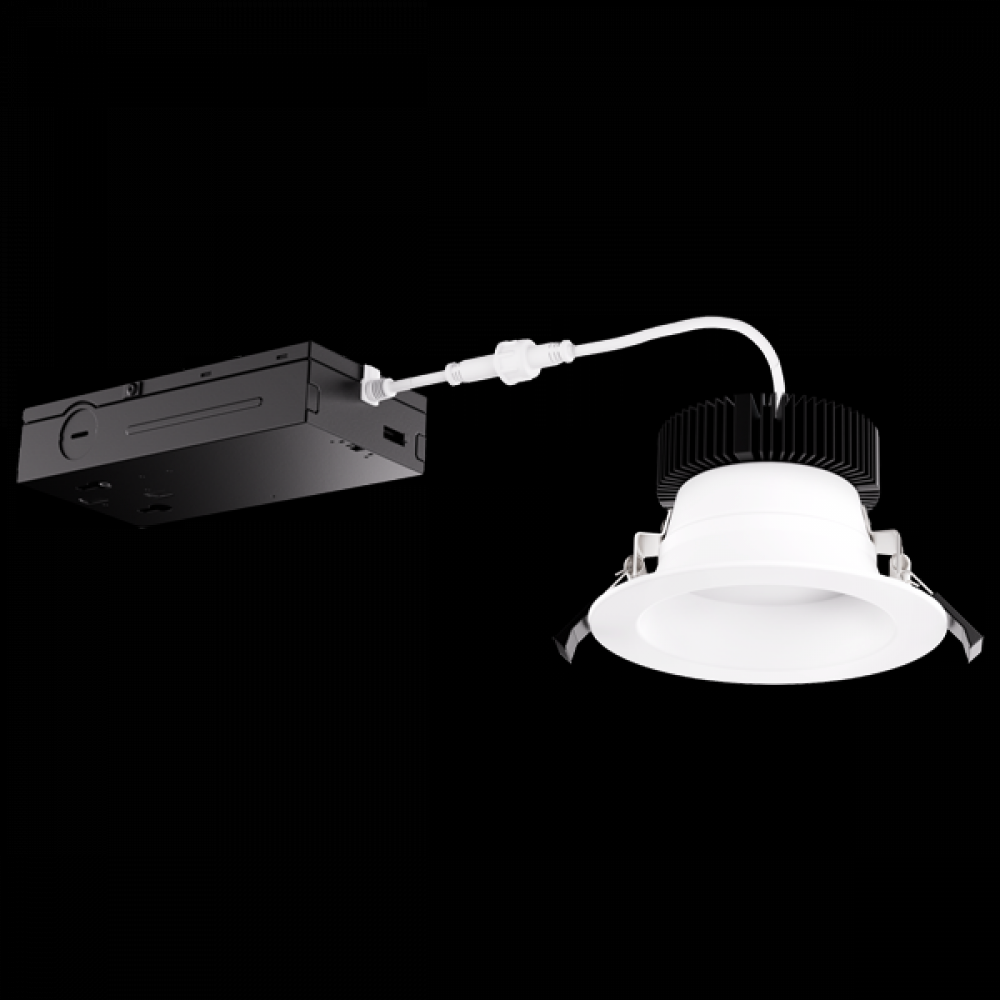

Our 4 LED Recessed Downlights are designed for quick and easy installation without a housing for both new construction and remodel applications, gives you the options you are looking for in one fixture. The CCT manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K or 5000K. The Lumen Switch allows you to choose between 1000 (12W), 1250 (15W), 1500 (18W), 1800 (22W) or 2000 (25W) lm. IC-Rated for use with direct contact with insulation.

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White

Option:

Energy Star

Title 24

Outdoor

Wet Rated

Voltage:

100-120

Lumens:

801-1100

Kelvin:

2501-3000

Wattage:

12w

Refinement Options

Finish:

Haze with White Trim

Voltage:

120 V/277 V

Bulb Type:

LED

Kelvin:

2700, 3000, 3500, 4000, 5000

Lumens / Light Output:

1000, 1250, 1500, 1800, 2000

Beam Angle:

80°

Bulb CRI:

90+

Dimmable Type:

0-10V/Triac/ELV

Energy Star:

Yes

JA8:

Yes

Location Rating:

Wet Rated

Outdoor:

Yes

Title 24:

Yes

Wattage:

12 W, 15 W, 18 W, 22 W, 25 W

80° Standard beam angle

90+ CRI for extremely accurate color rendering

Designed to fit in plenums as shallow as 3

Eliminates the need for housing

Energy Star Certified, Title 24 JA8-2019 Compliant

IC Airtight for use with direct contact to insulation

Includes driver and Jbox

Lumens (Wattage): 1000 lm (12W), 1250 lm (15W), 1500 lm (18W), 1800 lm (22W) or 2000 lm (25W)

New Construction application requires mounting plate or frame

Remodel applications require no additional accessories

Wet Location allows for use indoors or outdoors

Manufacturer Info

Manufactured By:

Elco Lighting
