Product Overview

Small aperture 12V AC Downlight delivers over 600 lumens. More than a traditional 50W MR16 Halogen Lamp. Requires 12V AC Transformer (daisy chain up to 6). Dimmable ELV, MLV or 0-10V depending on transformer used.

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

Bronze

Refinement Options

Category:

Recessed Lighting

Finish:

Bronze

Voltage:

12 VAC

Bulb Dimmable:

Yes

Bulb Type:

LED

Kelvin:

2700

Lumens / Light Output:

600

Beam Angle:

38°

Bulb CRI:

93+

JA8:

Yes

Max Wattage:

6.1 W

Safety Rating:

UL Approved

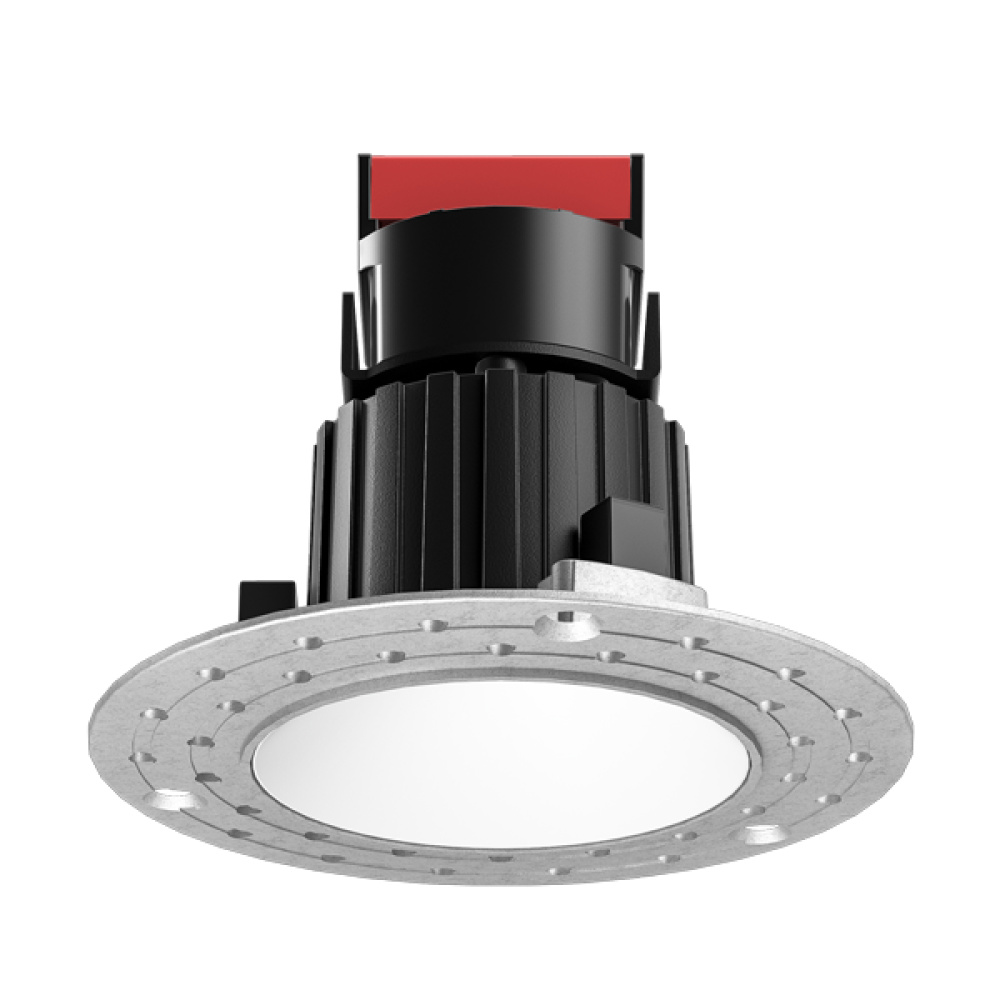

1 Trimless Round Recessed Oak™ Downlight: 1″ Trimless Light Engine

1 Trimless Spackle Frame, EL01SFR, ordered separately (required)

38° Standard beam with optional 28° and 50°

Daisy chain up to 6 fixtures with E1LDRV60

Height allows for use in ceilings with under 3 depth. Ceiling thickness can be reduced from fixture depth

IC Airtight for use with direct contact to insulation

JA8-2016-E & UL listed

Life Span 50,000 Hours L70

Remodel requires no frame. New construction requires E2LF2 Frame.

Requires 12V AC transformer. Dimmable ELV, MLV or 0-10V depending on transformer used

Wet Location Rated for Indoor and Outdoor Use

Manufacturer Info

Manufactured By:

Elco Lighting
